Compact installation
Depending on the configuration, the installation height starts at 320 mm. We check the space required for your system.
03 / Textile roller door
The textile roller door opens upwards.
The textile roller door rolls up above the opening and runs in side tracks. Standard sizes reach up to 7 m wide and 4.5 m high. We select the fabric and print to suit your retail area.
Discuss your project
Trentex by PORTECWorldwide supplyPORTEC installation or supply-only
How it works
Stored above the opening.
The fabric curtain winds onto a roller when the door opens. Side tracks guide it during opening and closing. Available headroom and fixing conditions on both sides are key to planning.
In everyday use
Features at a glance.
Visibility to suit your needs
Transparent fabrics allow views into the retail area when the door is closed.
Custom printing available
A picture or graphic adds a design to the surface of the closed roller door.
See the system in motion.
Original film of an earlier configuration. Current dimensions and specifications are confirmed for your project.
Open upwards. Guided at the sides.
The textile curtain runs in side guides and rolls up above the opening. Space for the winding shaft is allowed for here.
Dimensions and installationTextile roller door with an upper winding shaft and two side guides
Partly open: The curtain rolls upwards onto the winding shaft.
Move your pointer across the drawing or use the slider.
Use the slider or the Open and Close buttons.
Schematic operation. Installation is planned for each project.
Construction in detail
Rolled up above.
Guided at the sides.

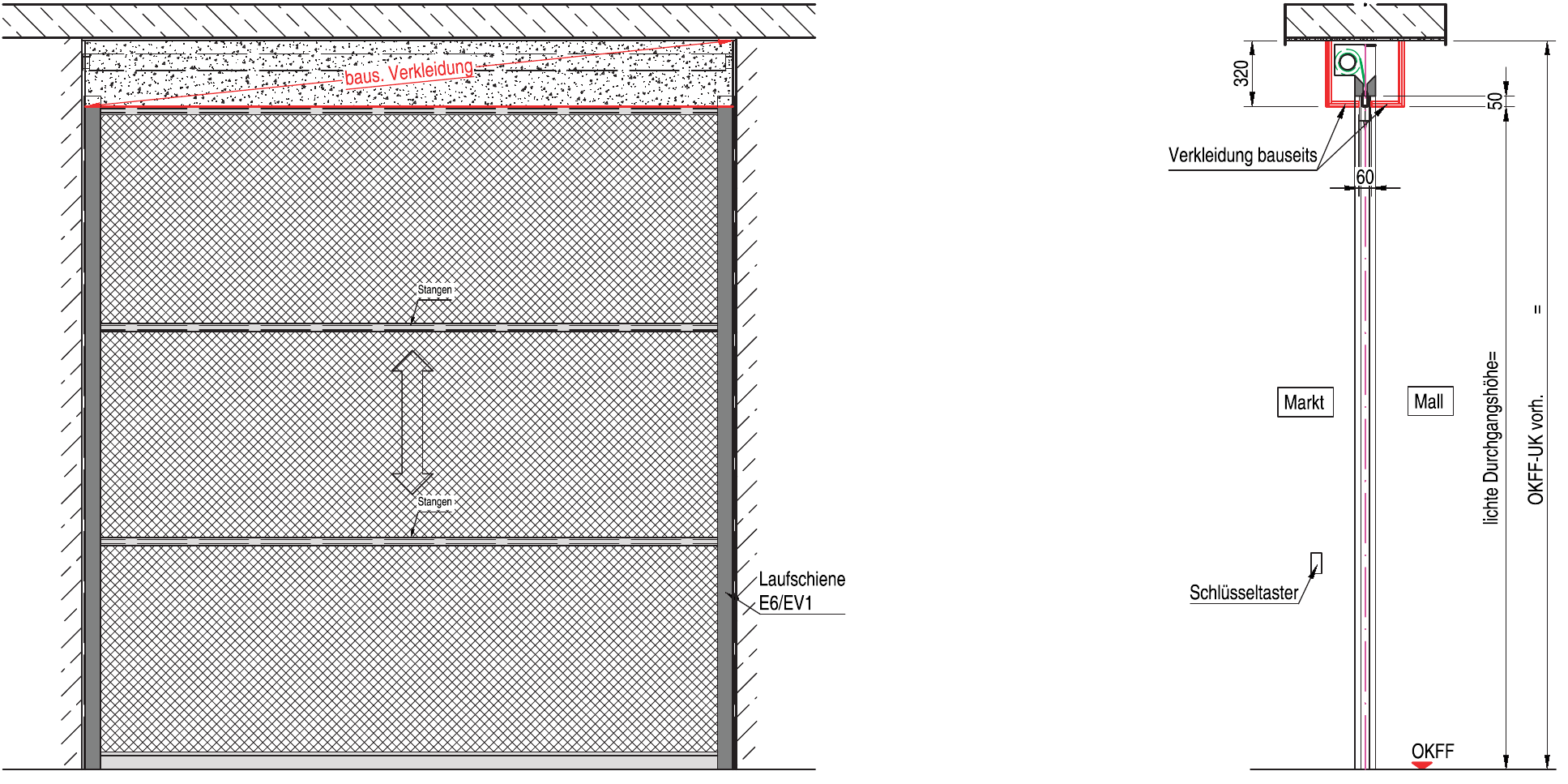

The original front and section drawing shows the construction of the textile roller door. Select one of the three numbers.
TRENTEX / 03Textile roller door · Front and section
About the installation / Retail space
Textile roller door with a floral print.
The textile roller door opens upwards. When closed, its floral print complements the bright retail interior.
Planning and specification
Dimensions and
installation planning.
For shop entrances and retail areas with space for the roller above the opening.
Discuss your installationTechnical requirements
- Standard dimensions
- Up to 7 m wide × 4.5 m high
- Storage
- Above the opening; installation height from 320 mm, subject to configuration
- Guidance
- Side tracks
- Information needed for planning
- Opening width and height, headroom and side fixings
Material and design
- Transparent
- Black mesh
- Custom-printed
- Semi-transparent or opaque
- Cut-resistant protect light fabric curtain
Explore material finishes
Dimensions and material combinations are confirmed for your specific installation.
Download the Trentex brochureOther opening methods
Explore other opening methods.
Shop partitionThe textile shop partition closes off retail areas with different opening hours. For projects across multiple locations, we work with you to agree common specifications and installation details. The fabric curtain runs along a ceiling track and is stored at the side. No floor track is required.
Trentex smartTrentex smart closes openings up to 7 m wide without continuous tracks. The fabric curtain is pulled across from the side, hooked into place and tensioned.
Your project / Next steps
Which area would you
like to close off?
Briefly describe your retail area. You can optionally add dimensions, photos and plans.
If you are planning several locations, please mention them in your project description. We supply worldwide, with installation by PORTEC or supply only, as required.
What happens next
- We discuss the space and intended use
- We agree on the system and material
- We prepare the details and quotation
